35mm 4 Bolt Medium Duty Flange Unit - FYH UCFX07

Name: 35mm 4 Bolt Medium Duty Flange Unit - FYH UCFX07
Brand: Cutting Tool Pickers 1
SKU: 1000-114-278
Price: 52.0 CAD
Availability: InStock

SKU 1000-114-278

$52.00 - $52.00

$52.00

$52.00 - $52.00

$52.00

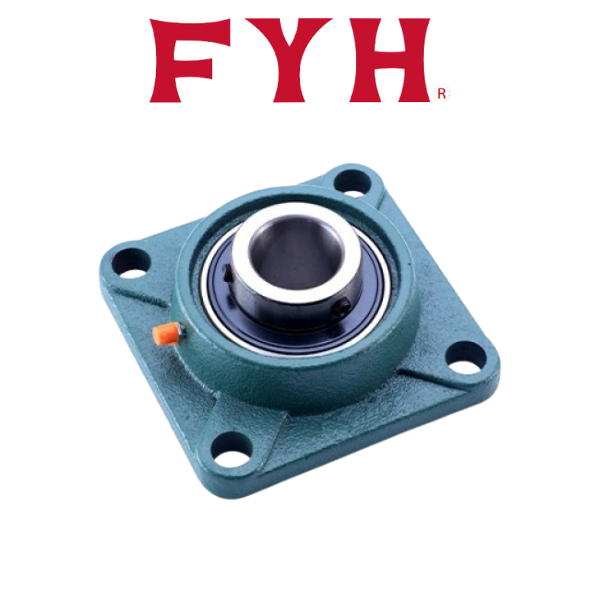

UCFX07- 35mm 4 Bolt Medium Duty Flange Unit
Square flanged ball bearing unit with set screw locking, cast iron housing

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective
Made in Japan

Dimensions:

Attachment bolt diameter: 14 mm
Shaft diameter: 35 mm
Housing overall width: 35.5 mm
Width, total: 51.2 mm
Centre distance between bolt holes: 102 mm
Bearing width, total: 49.2 mm

01/25
FYH
