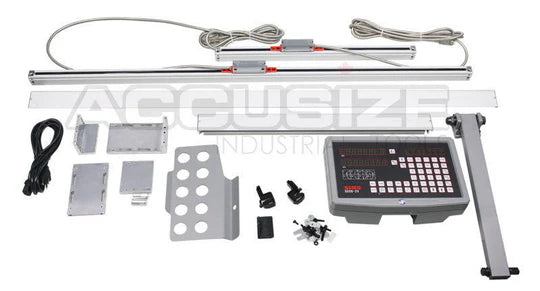

10"x54" 2-Axis DRO Mill Package - Accusize SINS-1004

Features:

• Mill Size: 10'' x 54''
• Travel: 16'' x 40''
• Overall Length of Scale: 21'' x 45''
• Voltage 90V-240V
• Power DC 5v (15%) 80 MA
• Two mounting brackets are each located at either end of the scale
• Resolution selection: 0.0002"/0.005mm
• Zero setting
• Half calculating, locating workpiece center
• Inch/Metric conversion and INC/ABS conversion
• Diameter/radius selection
• Simple & Smooth "R" function
• Divide the perimeter of circle # (Bolt Circle Drilling)
• Hole Drilling Along An Oblique Line
• Save 200 work piece zero points
• Angular Surface Processing
• Progressive Processing of Rectangular Inner Chamber
• To reach objective values stop
• Cone measure
• Number percolate
• Takes 16 bits & 32 bits CPU technology
• 200 cutlery memory
• Power failure memory
• KA-300 series small size encoder
• All mounting hardware
• 1 standard DRO Counter
• 2 Linear glass scales, cross slide scale is slim style model
• Operating manual
• Resolution 0.0002"/0.005mm
• Max. response speeds: 47 in./sec.
• Aluminum outside case with double rubber seals
• Over 10" connecting cable
• IP53 Liquid & Particle resistance

01/25
SINS-1004
Accusize
