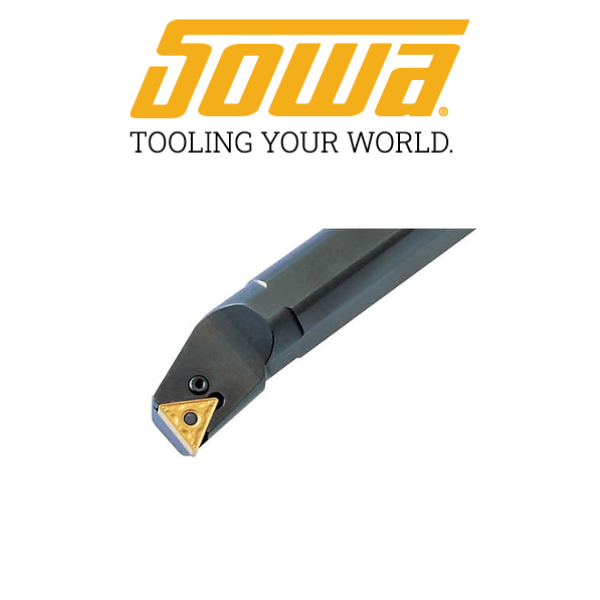

S24V-PTFNR-3 Boring Bar - Sowa 145923

Name: S24V-PTFNR-3 Boring Bar - Sowa 145923
Brand: Cutting Tool Pickers
SKU: 3000-145923
Price: 279.0 CAD
Availability: InStock

SKU 3000-145923

$279.00 - $279.00

$279.00

$279.00 - $279.00

$279.00

1-1/2" S24V-PTFNR-3 Indexable Boring Bar

• Toolholder Style: PTFNR
• Hand of Holder: Right Hand
• Insert Compatibility: TNMG (TN__) 33_
• Through Coolant: No
• Insert Holding Method : Pin

Dimensions:
• Minimum Bore Diameter (Decimal Inch): 1.76
• Overall Length (Inch): 16
• Shank Diameter (Decimal Inch): 1.5
• Lead Angle : 10º
• Center to Cutting Edge (Decimal Inch) : 0.89
• Rake Angle : -6
• Shank Width Between Flats : 1.382
• Head Length (Decimal Inch) : 2.165

01/24
Sowa Pt# 145923

We currently have 4 in stock.
