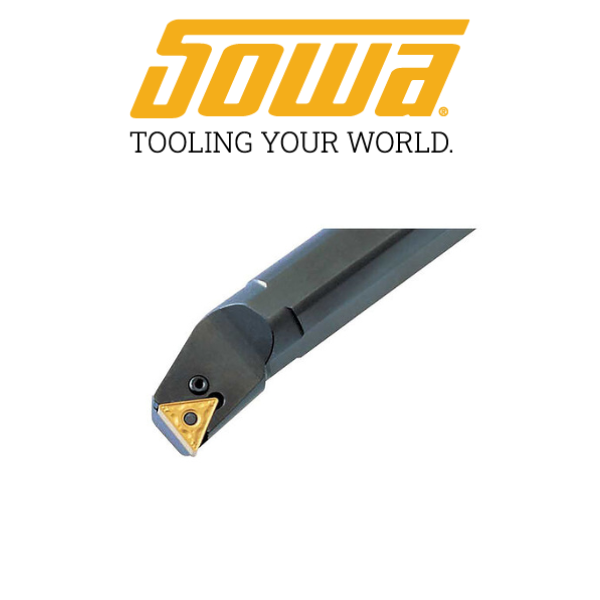

S20U-PTFNR-3 Boring Bar - Sowa 145921

Name: S20U-PTFNR-3 Boring Bar - Sowa 145921
Brand: Cutting Tool Pickers
SKU: 3000-145921
Price: 221.0 CAD
Availability: InStock

SKU 3000-145921

$221.00 - $221.00

$221.00

$221.00 - $221.00

$221.00

1-1/4" S20U-PTFNR-3 Indexable Boring Bar

• Toolholder Style: PTFNR
• Hand of Holder: Right Hand
• Insert Compatibility: TNMG (TN__) 33_
• Through Coolant: No
• Insert Holding Method : Pin

Dimensions:
• Minimum Bore Diameter (Decimal Inch): 1.47
• Overall Length (Inch): 14
• Shank Diameter (Decimal Inch): 1.25
• Lead Angle : 10º
• Center to Cutting Edge (Decimal Inch) : 0.765
• Rake Angle : -6
• Shank Width Between Flats : 1.171
• Head Length (Decimal Inch) : 1.969

01/24
Sowa Pt# 145921

We currently have 1 in stock.

Quantity
