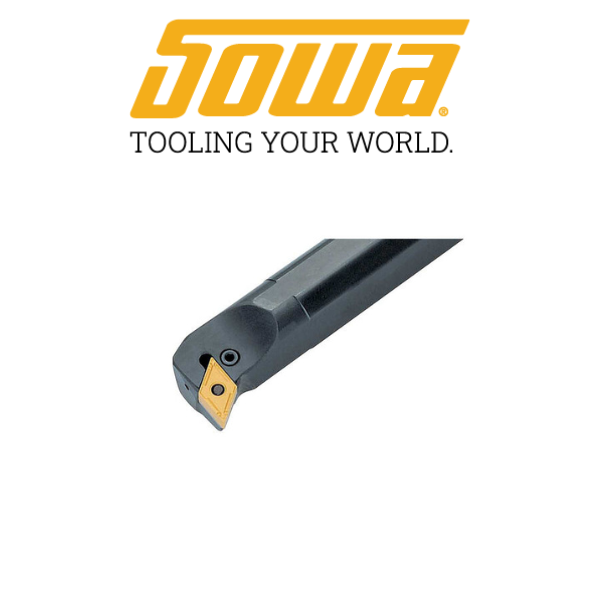

1-1/4" S20U-PDUNR-4 Indexable Boring Bar

• Toolholder Style: PDUNR
• Minimum Bore Diameter (Decimal Inch): 1.705
• Hand of Holder: Right Hand
• Overall Length (Inch): 14
• Shank Diameter (Decimal Inch): 1.25
• Insert Compatibility: DN__ 43_
• Insert Holding Method : Pin
• Lead Angle : 16º
• Center to Cutting Edge (Decimal Inch) : 1
• Rake Angle : 0
• Shank Width Between Flats : 1.171
• Head Length (Decimal Inch) : 1.969
• Through Coolant: No

09/26
Sowa Pt# 145911
