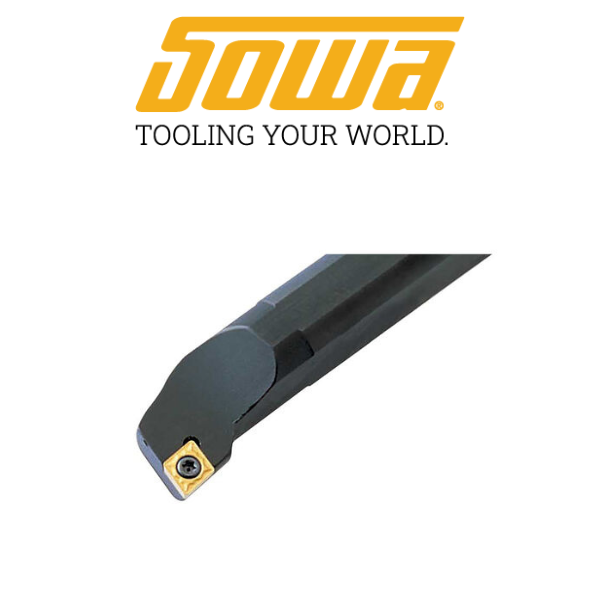

S20R-SCLCR-4 Indexable Boring Bar - Sowa 145932

Name: S20R-SCLCR-4 Indexable Boring Bar - Sowa 145932
Brand: Cutting Tool Pickers
SKU: 3000-145932
Price: 136.0 CAD
Availability: InStock

SKU 3000-145932

$136.00 - $136.00

$136.00

$136.00 - $136.00

$136.00

1-1/4" S20R SCLCR-4 Indexable Boring Bar

• Toolholder Style: SCLCR
• Hand of Holder: Right Hand
• Minimum Bore Diameter (Decimal Inch): 1.47"
• Overall Length (Inch): 14"
• Shank Diameter (Decimal Inch): 1.250"
• Center to Cutting Edge (Decimal Inch) : 0.765"
• Shank Width Between Flats : 1.171"
• Head Length (Decimal Inch) : 1.969"
• Rake Angle : 0º
• Lead Angle : 10º
• Through Coolant: No
• Insert Holding Method : Screw
• Insert Compatibility: (CCMT) / (CCGT) 43_

03/24
Sowa Pt# 145932

We currently have 8 in stock.

Quantity
