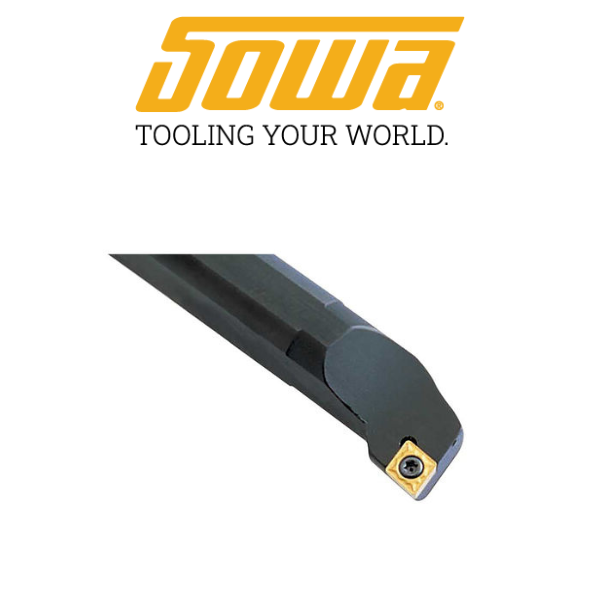

S20R-SCLCL-4 Indexable Boring Bar - Sowa 145935

Name: S20R-SCLCL-4 Indexable Boring Bar - Sowa 145935
Brand: Cutting Tool Pickers
SKU: 3000-145935
Price: 193.0 CAD
Availability: InStock

SKU 3000-145935

$193.00 - $193.00

$193.00

$193.00 - $193.00

$193.00

1-1/4" S20R SCLCL-4 Indexable Boring Bar

• Toolholder Style: SCLCL
• Hand of Holder: Left Hand
• Minimum Bore Diameter (Decimal Inch): 1.47"
• Overall Length (Inch): 14"
• Shank Diameter (Decimal Inch): 1.250"
• Center to Cutting Edge (Decimal Inch) : 0.765"
• Shank Width Between Flats : 1.171"
• Head Length (Decimal Inch) : 1.969"
• Rake Angle : 0º
• Lead Angle : 10º
• Through Coolant: No
• Insert Holding Method : Screw
• Insert Compatibility: (CCMT) / (CCGT) 43_

03/24
Sowa Pt# 145935

We currently have 1 in stock.
