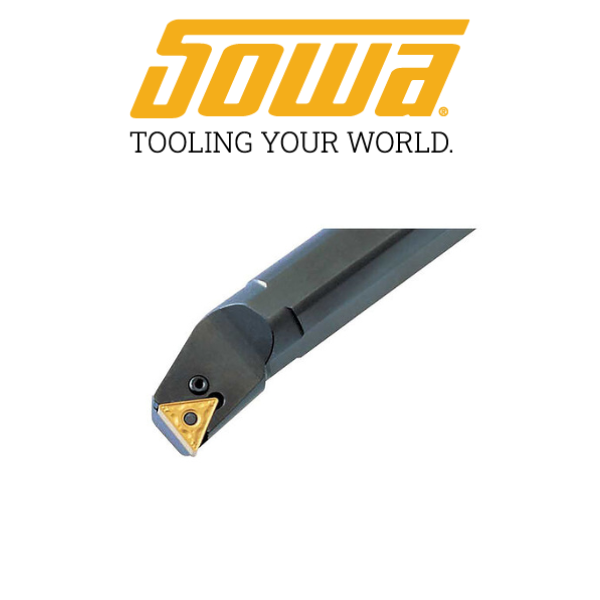

S16T-PTFNR-3 Boring Bar - Sowa 145919

Name: S16T-PTFNR-3 Boring Bar - Sowa 145919
Brand: Cutting Tool Pickers
SKU: 3000-145919
Price: 156.0 CAD
Availability: InStock

SKU 3000-145919

$156.00 - $156.00

$156.00

$156.00 - $156.00

$156.00

1" S16T-PTFNR-3 Indexable Boring Bar

• Toolholder Style: PTFNR
• Hand of Holder: Right Hand
• Insert Compatibility: TNMG (TN__) 33_
• Through Coolant: No
• Insert Holding Method : Pin

Dimensions:
• Minimum Bore Diameter (Decimal Inch): 1.2
• Overall Length (Inch): 12
• Shank Diameter (Decimal Inch): 1
• Lead Angle : 12º
• Center to Cutting Edge (Decimal Inch) : 0.64
• Rake Angle : -6
• Shank Width Between Flats : 0.921
• Head Length (Decimal Inch) : 1.575

01/24
Sowa Pt# 145919

We currently have 2 in stock.
