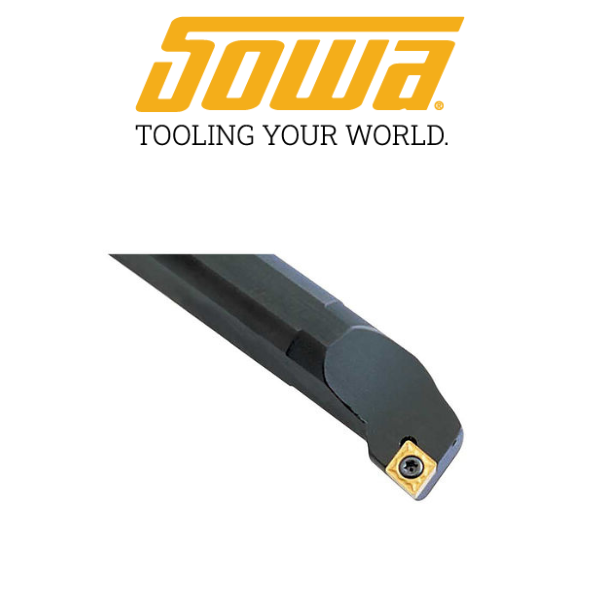

S16R-SCLCL-3 Indexable Boring Bar - Sowa 145930

Name: S16R-SCLCL-3 Indexable Boring Bar - Sowa 145930
Brand: Cutting Tool Pickers
SKU: 3000-145930
Price: 205.0 CAD
Availability: InStock

SKU 3000-145930

$205.00 - $205.00

$205.00

$205.00 - $205.00

$205.00

1" S16R SCLCL-3 Indexable Boring Bar

• Toolholder Style: SCLCL
• Hand of Holder: Left Hand
• Minimum Bore Diameter (Decimal Inch): 1.2"
• Overall Length (Inch): 12"
• Shank Diameter (Decimal Inch): 1"
• Center to Cutting Edge (Decimal Inch) : 0.64"
• Shank Width Between Flats : 0.921"
• Head Length (Decimal Inch) : 1.772"
• Rake Angle : 0º
• Lead Angle : 6º
• Through Coolant: No
• Insert Holding Method : Screw
• Insert Compatibility: (CCMT) / (CCGT) 32.5_

03/24
Sowa Pt# 145930

We currently have 4 in stock.
