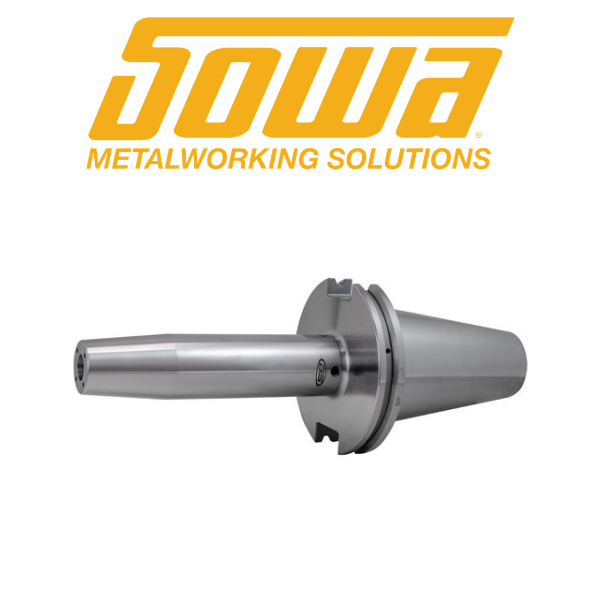

CAT50 25mm x 100mm Shrink Fit Holder With Coolant Ports - GS Tooling 541924

• Shank Type: Taper Shank
• Taper Size: CAT50
• Hole Diameter (mm): 25
• Projection (mm): 100
• Nose Diameter (mm): 44
• Through Coolant: Yes
• Unsurpassed Accuracy: Concentricity of ≤0.0001" (3µm) with tool shrunk in holder.
• Holders are balanceable with a balancing machine
• Balanced to G2.5 at 30,000rpm
• 4 threaded Coolant ports in the nose, can be closed with a 3mm set screw
• Maximum gripping power with exceptional concentricity
• TIR ≤0.0001" / 0.003mm
• AT2 Taper Accuracy
• Tool is gripped 360° along the entire length of bore resulting in an evenly distributed clamping force
• Material: H13 Tool Steel
• The hot hardness (hot strength) of H13 resists thermal fatigue cracking which occurs as a result of cyclic heating and cooling cycles
• RFID chip hole
