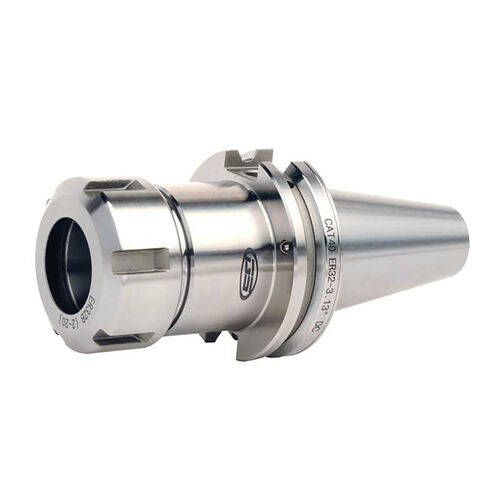

CAT40 ER32 3.13" Dual Contact ER Collet Chuck - GS Tooling 521424

Name: CAT40 ER32 3.13" Dual Contact ER Collet Chuck - GS Tooling 521424
Brand: Cutting Tool Pickers
SKU: 3000-521424
Price: 335.7 CAD
Availability: InStock

SKU 3000-521424

$335.70 - $335.70

$335.70

$335.70 - $335.70

$335.70

• Minimum Collet Capacity (Decimal Inch) : 0.078
• Maximum Collet Capacity (Decimal Inch) : 0.787
• Balanced to (RPM) : 30000
• Collet Nut Diameter (Decimal Inch) : 1.97
• Seat Depth (Decimal Inch) : 1.34
• Tightening Torque (Nm) : 169.5
• Collet System : ER
• Collet Series: ER32
• Shank Type: Taper Shank
• Taper Size: CAT40
• Projection (Decimal Inch): 3.13
• Improves rigidity and reduces vibration allowing for increased feed rates and increased tool life
• DIN coolant option - standard
• All Ground Body
