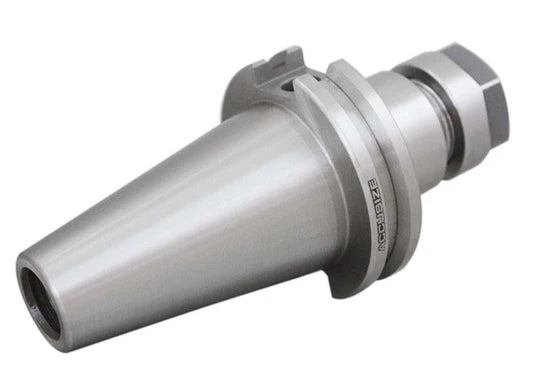

CAT40-ER20 Premium V-Flange Collet Chuck - Accusize 2001-0025

Name: CAT40-ER20 Premium V-Flange Collet Chuck - Accusize 2001-0025
Brand: Cutting Tool Pickers
SKU: 3000-2001-0025
Price: 115.0 CAD
Availability: InStock

SKU 3000-2001-0025

$115.00 - $115.00

$115.00

$115.00 - $115.00

$115.00

Made from alloy steel, hardened to HRC 54-60

Range: 1/16"-1/2"
Project Length 2.76"

Taper accuracy ground exceeds AT3 standard
Factory balanced to save spindle life and tool life, and increase productivity
Concentricity less than 0.0002" from taper to collet face
Certification included with each holder, documented TIR, taper accuracy, and balance measurement.
Coolant through capacity
Draw Bar Thread: CAT40 5/8-11
Balanced to 20,000 RPM at G2.5
Wrench not included
Taper: CAT40
Packed in Fitted Box

01/25
2001-0025
Accusize
