C10-391.01-100 140 Extension Adapter - Sandvik

Name: C10-391.01-100 140 Extension Adapter - Sandvik
Brand: SashaACS
SKU: 1000-115-171
Price: 795.0 CAD
Availability: InStock

SKU 1000-115-171

$795.00 - $795.00

$795.00

$795.00 - $795.00

$795.00

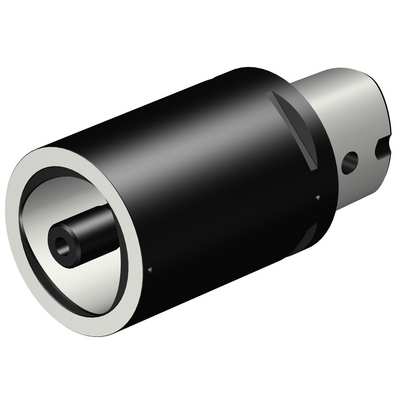

C10-391.01-100 140 Extension Adapter

Coromant Capto extension adapter. It features a C10 machine-side connection and a C10 workpiece-side connection, designed to extend tool reach in CNC turning or milling applications

Machine-side interface: Coromant Capto C10 (bolt and segment clamping)

Workpiece-side interface: Coromant Capto C10 (bolt clamping)

Body length (LB_1): 140 mm

Connection/Body diameter (DCONMS / BD_1): 100 mm

Maximum coolant pressure: 80 bar

Coolant specifications: Axial concentric and radial entry, axial concentric exit

Recommended tightening torque: 380 Nm

Weight: ~7.77 kg

09/26
5726751
Sandvik
