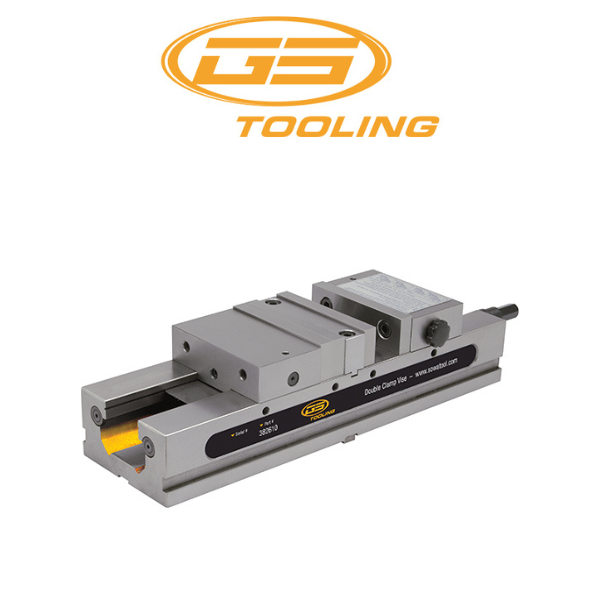

4" Double Clamp Vise - GS Tooling 382610

4" TLD-40G/HV Double Clamp Vise

• Jaw Width (Inch): 4"
• Orientation Type: Horizontal
• Number of Stations: 2
• Base Motion Type: Stationary
• Jaw Opening Capacity (mm): 2 X 90

• Double clamp set ~ one handle can simultaneously operate two moveable jaws and clamps 2 workpieces of same or different size or one large workpiece
• This model can increase efficiency and productivity of CNC machines
• The movable jaw ANTI-LIFT mechanism provides alignment to workpiece without jaw lift
• There are 6 kinds of clamping ways to meet workpieces of different shapes and sizes
• The whole body is precisely ground and height tolerance is within ± 0.025mm (±0.001"), therefore several vises can be lined up for production
• The vise is made of FDC-80.000 PSI (55kg/cm2) Ductile iron, and slide ways are hardened to HRC45
• The rigid construction prevents base distortion
• Precision made to high accuracy standard


05/24
382610
