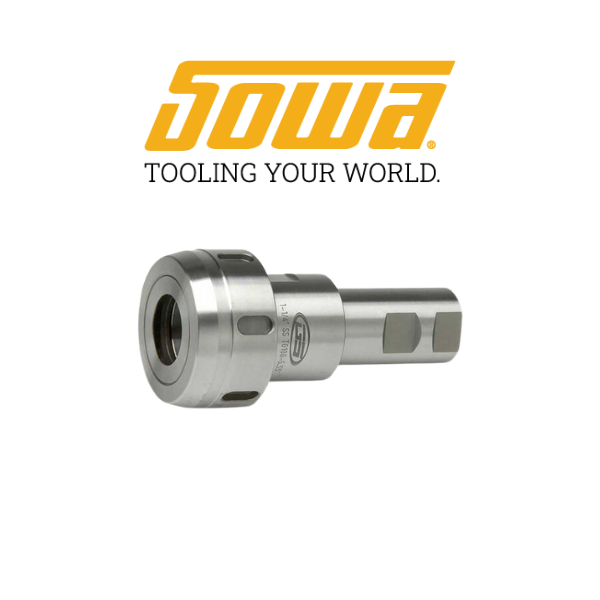

TG100 Collet Chuck Straight Shank - Sowa 534320

1-1/2" TG100 Straight Shank Collet Chuck

This 1-1/2" TG100 Straight Shank Collet Chuck from GS Tooling is built for precision, stability, and durability in high-performance machining. Designed for use with TG100 collet systems, it offers a wide gripping range and solid straight shank compatibility for various toolholding setups.

Key Features:

• Compatible with TG100 collet system for excellent holding power
• Straight shank design for flexible mounting and alignment
• Accommodates a wide range of tooling with a collet capacity from 3/64" to 1"
• Precision-ground seat depth ensures consistent tool positioning
• High tightening torque (81.3 Nm) for secure, vibration-free operation

Dimensions:

• Shank Diameter: 1-1/2"
• Collet Capacity Range: 3/64" – 1"
• Collet Nut Diameter: 2.5"
• Overall Length: 9"
• Seat Depth: 2.73"
• Shank Length: 6"
• Projection: 3"

04/25
Sowa 534320
